MJC cartridge dust collector

Reverse jet tubular bag dust collectors for many applications that generate light to heavy volumes of any dust

Suitable for many different applications that generate light to heavy volumes of any dust
The MJC range of reverse jet tubular bag dust collectors was developed for continuous operation in industrial process filtration and dust collection applications; incorporating patented Nederman UniClean cartridge technology for maximum cleaning efficiency and extended life.

Air Volume Range: 1.700 to 68.000 m3/hr (1,000 to 40,000 CFM)

Cleaning controller type NF8HD250 in IP65 enclosure, supply voltage 230/220/110V.

Key features:
Standard filter range from 48 to 739m2 (517 to 7,955 ft2); larger units possible
Typical airflow volumes up to 60.000m3/h (35,340 CFM), or more, subject top application
Robust weatherproof welded steel construction

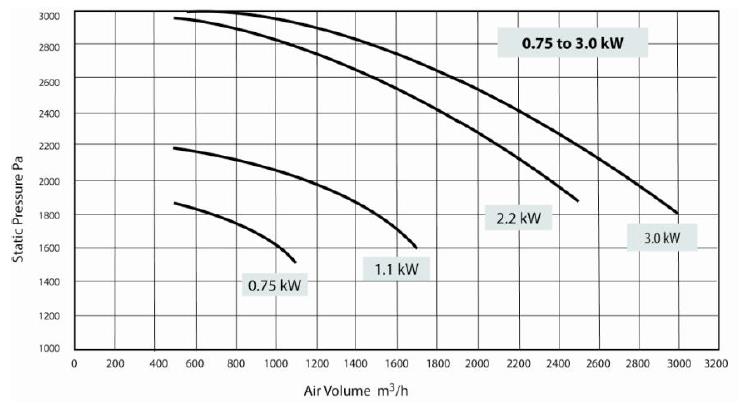

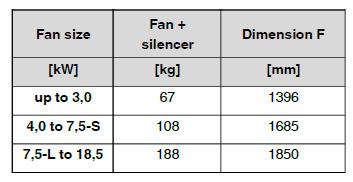

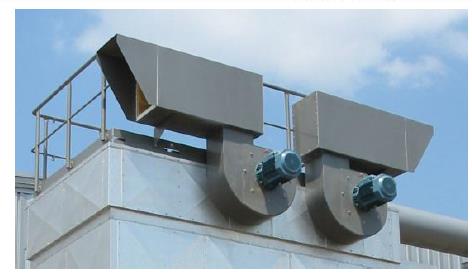

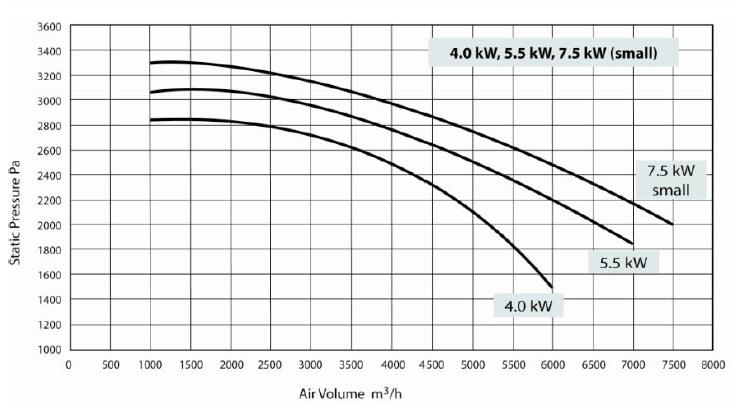

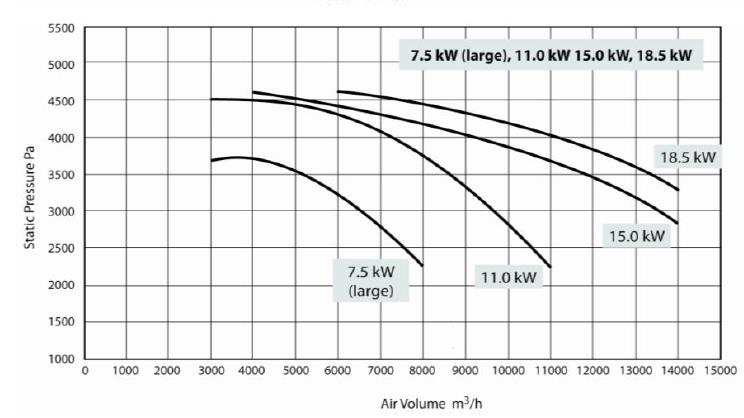

Space saving integral fans from 0.75 to 18.5kW (1 to 25hp)
Independently tested with ATEX compliant features for St1, St2 and St3 dusts
Integral pre-separation chamber, cross flow / down flow inlet air pattern
Wide range of discharge and waste handling options

Typical dust control and process applications:

  • Suitable for many different applications that generate light to heavy volumes of any dust The MJC range of reverse jet tubular bag dust collectors was developed for continuous operation in industrial process filtration and dust collection applications; incorporating patented Nederman UniClean cartridge technology for maximum cleaning efficiency and extended life. Air Volume Range: 1.700 to 68.000 m3/hr (1,000 to 40,000 CFM) Cleaning controller type NF8HD250 in IP65 enclosure, supply voltage 230/220/110V. Key features: Standard filter range from 48 to 739m2 (517 to 7,955 ft2); larger units possible Typical airflow volumes up to 60.000m3/h (35,340 CFM), or more, subject top application Robust weatherproof welded steel construction Space saving integral fans from 0.75 to 18.5kW (1 to 25hp) Independently tested with ATEX compliant features for St1, St2 and St3 dusts Integral pre-separation chamber, cross flow / down flow inlet air pattern Wide range of discharge and waste handling options Typical dust control and process applications:
  • Shot, sand and bead blasting
  • Shot, sand and bead blasting
  • Welding and cutting – laser, plasma, arc
  • Chemical, plastics and pharmaceutical powders

Technical data
Certifications CE, EX
Standard 2014/34/EC, 2004/108/EC, 2006/95/EC, EN 13463-1, EN 60204-1
Compressed air consumption -8,0 to 5,5
Installation Indoor, Outdoor
Suitable for combustible dust Yes
Filter cleaning method Pulse jet
Application Dust, Grit, Fumes
Dustbin volume (l) 75
Filter Area (m²) 48 to 739
Capacity (max airflow m3/h) 190000
Operating Temperature -10 to 80 Deg. C.
Filter type Cartridge
Filter material Polyester

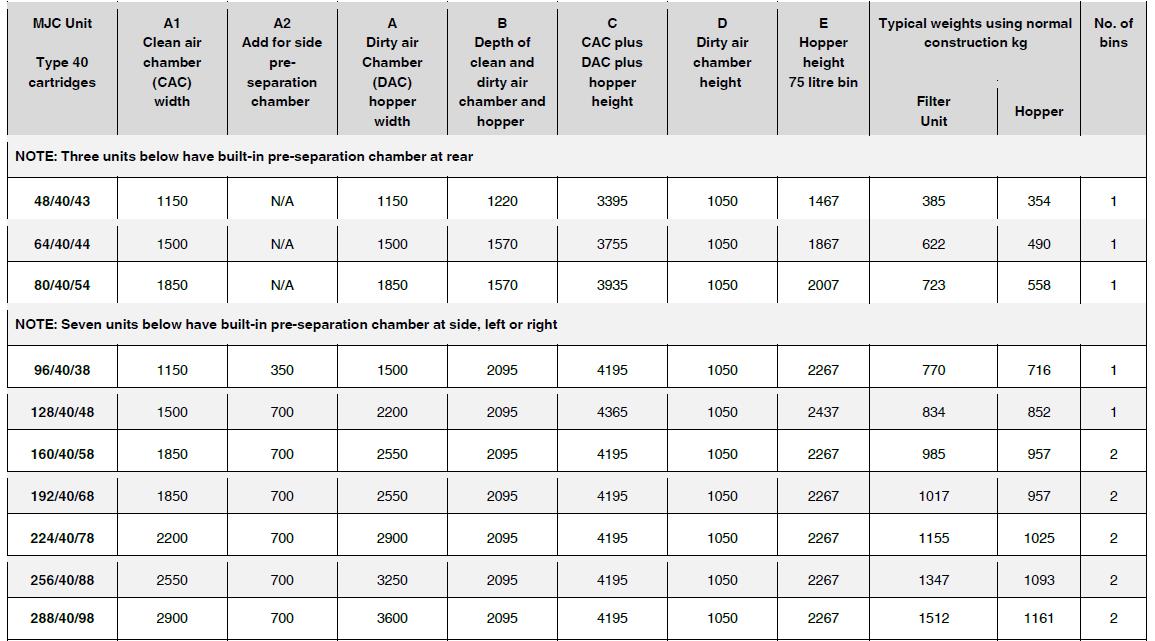

    MJC 64/40/44

    ArtNo: MJC64/40/45

    Number of filter elements
    16
    Note
    Unit has built-in pre-separation chamber at rear
    MJC 80/40/54

    ArtNo: MJC80/40/55

    Number of filter elements
    20
    Note
    Unit has built-in pre-separation chamber at rear
    MJC 96/40/38

    ArtNo: MJC96/40/39

    Number of filter elements
    24
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 128/40/48

    ArtNo: MJC128/40/49

    Number of filter elements
    32
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 160/40/58

    ArtNo: MJC160/40/59

    Number of filter elements
    40
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 192/40/68

    ArtNo: MJC192/40/69

    Number of filter elements
    48
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 224/40/78

    ArtNo: MJC224/40/79

    Number of filter elements
    56
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 256/40/88

    ArtNo: MJC256/40/89

    Number of filter elements
    64
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 288/40/98

    ArtNo: MJC288/40/99

    Number of filter elements
    72
    Note
    Unit has built-in pre-separation chamber at side, left or right

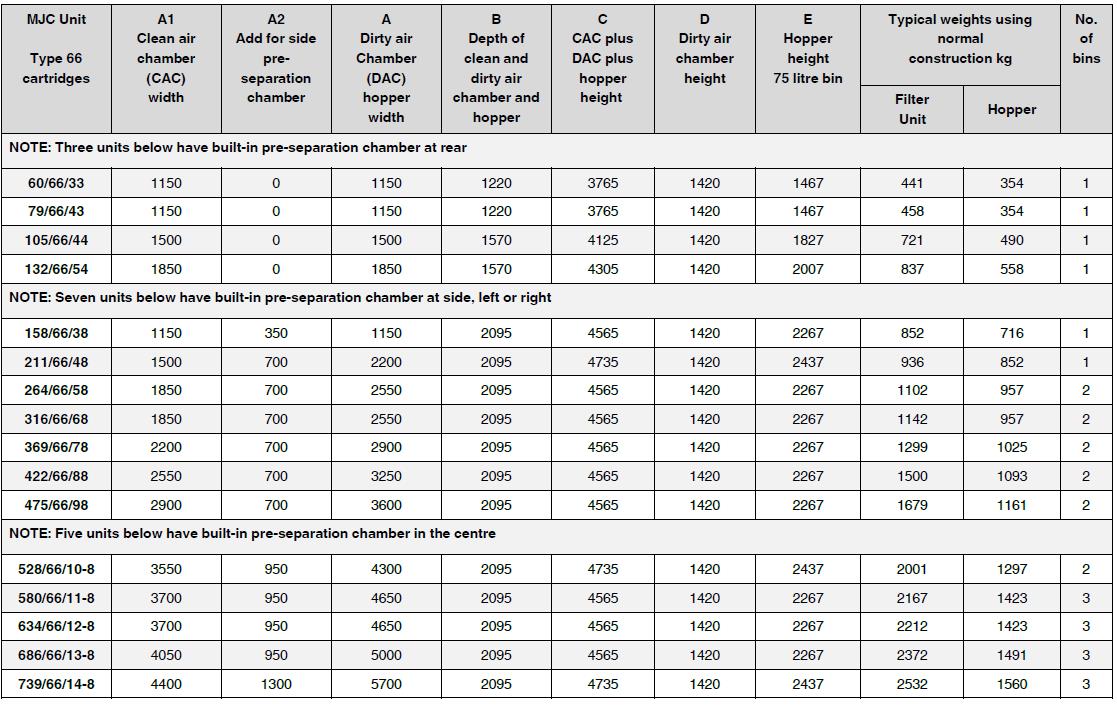

    MJC 60/66/33

    ArtNo: MJC60/66/33

    Number of filter elements
    9
    Note
    Unit has built-in pre-separation chamber at rear
    MJC 79/66/43

    ArtNo: MJC79/66/43

    Number of filter elements
    12
    Note
    Unit has built-in pre-separation chamber at rear
    MJC 105/66/44

    ArtNo: MJC105/66/44

    Number of filter elements
    16
    Note
    Unit has built-in pre-separation chamber at rear
    MJC 132/66/54

    ArtNo: MJC132/66/54

    Number of filter elements
    20
    Note
    Unit has built-in pre-separation chamber at rear
    MJC158/66/38

    ArtNo: MJC158/66/38

    Number of filter elements
    24
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 211/66/48

    ArtNo: MJC211/66/48

    Number of filter elements
    32
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 264/66/58

    ArtNo: MJC264/66/58

    Number of filter elements
    40
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 316/66/68

    ArtNo: MJC316/66/68

    Number of filter elements
    48
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 369/66/78

    ArtNo: MJC369/66/78

    Number of filter elements
    56
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 422/66/88

    ArtNo: MJC422/66/88

    Number of filter elements
    64
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 475/66/98

    ArtNo: MJC475/66/98

    Number of filter elements
    72
    Note
    Unit has built-in pre-separation chamber at side, left or right
    MJC 528/66/10-8

    ArtNo: MJC528/66/10-8

    Number of filter elements
    80
    MJC 580/66/11-8

    ArtNo: MJC580/66/11-8

    Number of filter elements
    88
    Note
    Unit has built-in pre-separation chamber in the centre
    MJC 634/66/12-8

    ArtNo: MJC634/66/12-8

    Number of filter elements
    96
    Note
    Unit has built-in pre-separation chamber in the centre
    MJC 686/66/13-8

    ArtNo: MJC686/66/13-8

    Number of filter elements
    104
    Note
    Unit has built-in pre-separation chamber in the centre
    MJC 739/66/14-8

    ArtNo: MJC739/66/14-8

    Number of filter elements
    112
    Note
    Unit has built-in pre-separation chamber in the centre
