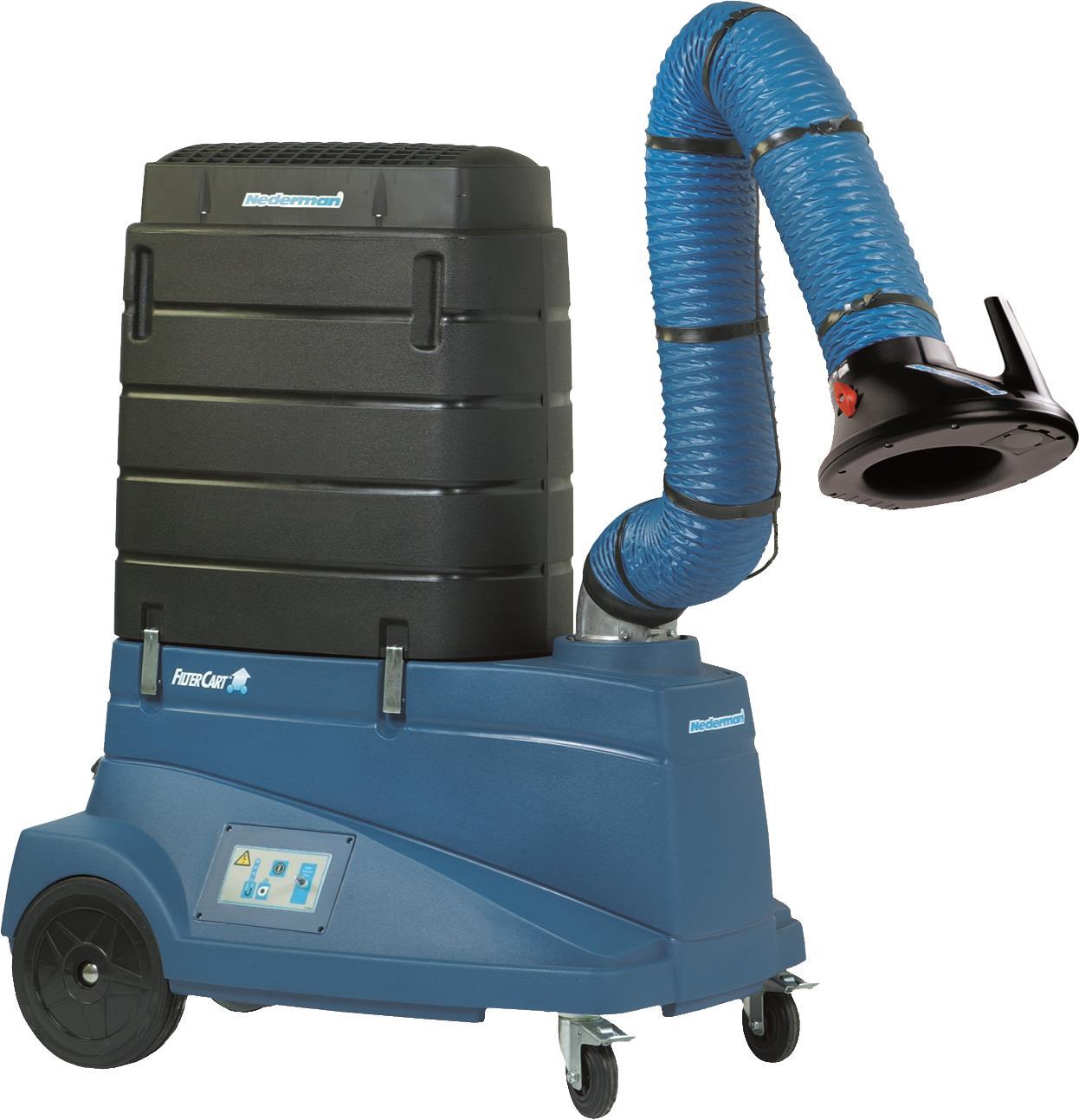

FilterCart Advanced

FilterCart Advanced+ mobile filter unit for intermittent to light duty welding and extraction applications.

The FilterCart Advanced+ is a light-weight, portable and easy to manoeuvre dust and fume extractor with a warning signal when the filter is full. It includes an easy-to-position Original extraction arm with an extended working range, thanks to the 10 ft. (3 m) long arm. The arm is already fitted to the unit enabling a fast and easy setup. The disposable nanofiber filter offers both significantly longer filter life and higher efficiency than previous versions of the FilterCart.

Long lasting, disposable nanofiber filter with large filter surface of 30 m2 (323 ft2).
Filter efficiency F9 (EN779), MERV 14 (ASHRAE 52.2)
HEPA 13 filter optional available.
ISO 21904 compliant

Technical data
Certifications	CE
Noise level (dB(A))	73
Protection class	IP 42
Filter efficiency (%)	99
Installation	Indoor
Material	Housing in roto moulded plastic. Extraction arm in PVC hose and aluminium frame. Fan in steel and aluminium.
Suitable for combustible dust	No
Material recycling (%)	99
Application	Fumes
Arm length (m)	3
Frequency (Hz)	50
No of phases	1
Filter type	Cartridge
Number of filter elements	1
Filter material	Nanofiber
Electric plug	UK
Weight (kg)	73
Power (kW)	0,75
Filter Area (m²)	30

Models2

FilterCart Advanced 3m 240V UK

ArtNo: 12635845

Power Voltage (V)

240

Note

Filter class - F9 (EN779), MERV 14 (ASHRAE 52.2) Note!! When using a Filtercart to extract fumes from a spark generating process such as welding, we recommend the installation of a hood spark arrester, part number 10551335.

FilterCart Advanced 3m 110V UK

ArtNo: 12635945

Power Voltage (V)

110

Note

Filter class - F9 (EN779), MERV 14 (ASHRAE 52.2). Note!! When using a Filtercart to extract fumes from a spark generating process such as welding, we recommend the installation of a hood spark arrester, part number 10551335.
