S-Series Dust Collector

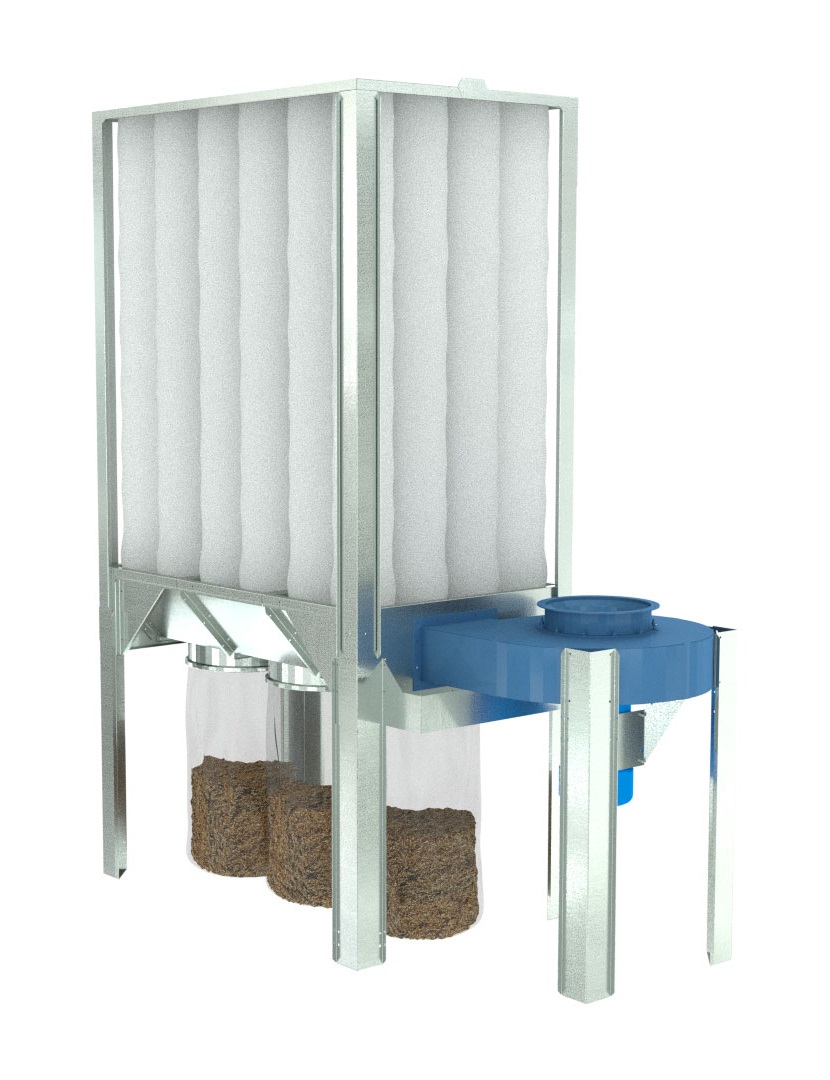

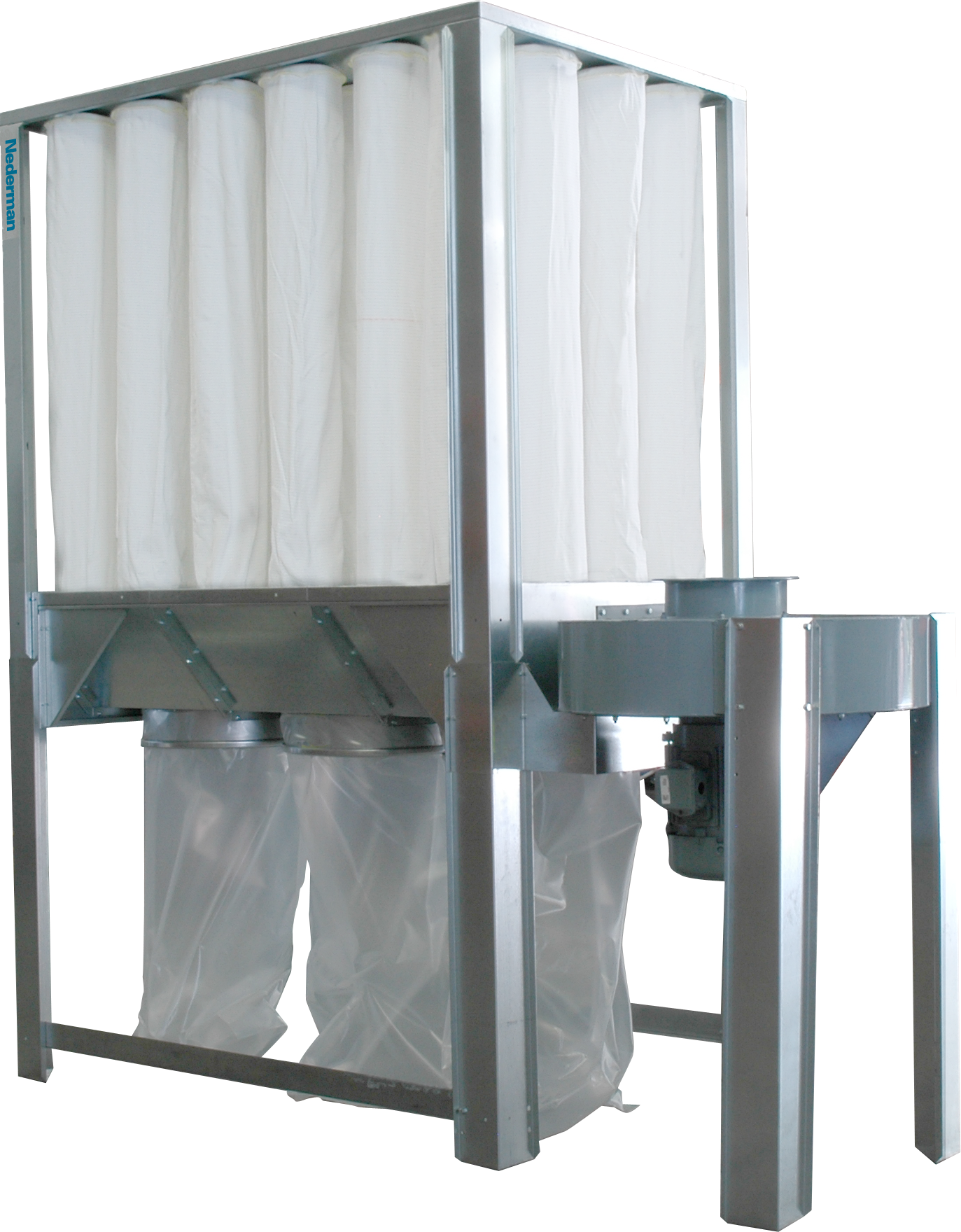

S-Series Dust Collector

Simple, silent and safe enclosureless dust collector for wood dust applications

The S-Series is an enclosureless, silent and simple to set up dust collector suitable for wood and sawdust applications (furniture, cabinetry, windows, doors, flooring, particle board, MDF, building materials, marine, and sawmills) and for general dust collection where feasible.

It is designed for indoor installation compliant with NFPA combustible dust regulations. They are available in three sizes: the S-500, S-750 and S-1000 ranging from 1,500 – 5,000 CFM, providing a cost-effective filtration solution for small and medium-sized workshops.

  • High performance Superbags reduces bag replacement needs down to 3-5 years
  • Energy efficient fans utilize an impeller design that is 20% more efficient than common radial blade fans
  • Silent operation with high performance fans run only 10-15 dB(A) over normal conversation sound level
  • Provide safety and reliability for your workplace and manufactured in compliance with the latest NFPA standards
  • Unique collapsible design with pre-installed fan and SuperBags minimize installation time and effort with 3 step easy and quick installation.

Technical data
Noise level (dB(A)) 70-75
Installation Indoor
Material Galvanized Steel
Application Dust
Dustbin volume (gal) 42 for Bags (standard) 45 for Barrels (optional) 230 for Dump Bin (optional)
Filter Area (ft²) 10.125 / bag
Capacity (max airflow cfm) 5000

Models13

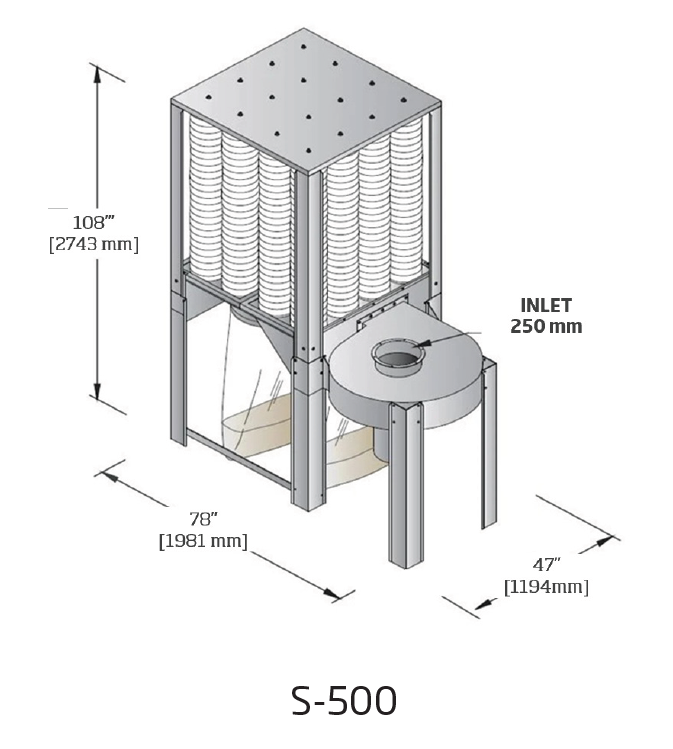

    S-500 Single Phase 208 Volt

    ArtNo: 89101005

    Power Voltage (V)
    208
    Frequency (Hz)
    60
    No of phases
    1
    Filter type
    Bag
    Number of filter elements
    16
    Filter material
    Superbag
    Weight (lbs)
    600
    Power (Hp)
    5.0 (3.75 Kw)
    Note
    3000 CFM at 5.0" Wg
    S-500 Three Phase 208-230/460 Volt

    ArtNo: 89101006

    Power Voltage (V)
    208-230/460
    No of phases
    3
    Filter type
    Bag
    Number of filter elements
    16
    Filter material
    Superbag
    Weight (lbs)
    600
    Note
    3000 CFM at 5.0" Wg

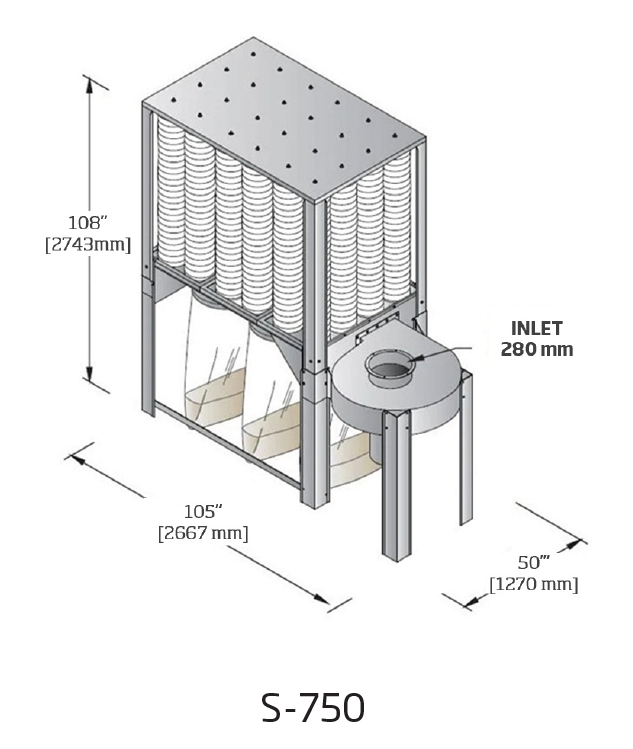

    S Filter S - 750

    ArtNo: 89101007

    Power Voltage (V)
    230
    Frequency (Hz)
    60
    No of phases
    1
    Filter type
    Bag
    Number of filter elements
    16
    Filter material
    Beane Material filter bags
    Weight (lbs)
    900
    Power (Hp)
    7.5
    Note
    243 Sq Ft of filter media Easy installation Quiet operation Three waste discharge points
    S-750 Three Phase 208-230/460 Volt

    ArtNo: 89101008

    Power Voltage (V)
    208-230/460
    Frequency (Hz)
    60
    No of phases
    3
    Filter type
    Bag
    Number of filter elements
    24
    Filter material
    Superbag
    Weight (lbs)
    750
    Power (Hp)
    7.4 (5.5 Kw)
    Note
    4500 CFM at 5.0" Wg

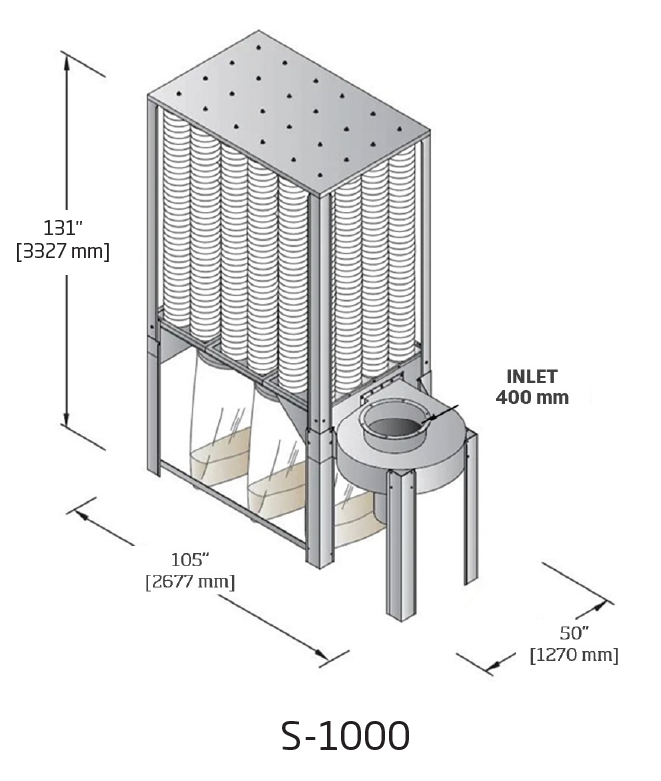

    S-1000 Three Phase 208-230/460 Volt

    ArtNo: 89101009

    Power Voltage (V)
    208-230/460
    Frequency (Hz)
    60
    No of phases
    3
    Filter type
    Bag
    Number of filter elements
    24
    Filter material
    Superbag
    Weight (lbs)
    100
    Power (Hp)
    10.0 (7.5 Kw)
    Note
    5000 CFM at 7.0" Wg
    S-500 After Filter. Shipped without fan.

    ArtNo: 89101018

    Power Voltage (V)
    N/A
    Frequency (Hz)
    N/A
    Filter type
    Bag
    Amperage (A)
    n/a
    Control Voltage (V)
    n/a
    Power (Hp)
    n/a
    S-750 Three Phase 575 Volt

    ArtNo: 89101019

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    No of phases
    3
    Filter type
    Bag
    Number of filter elements
    24
    Filter material
    Superbag
    Amperage (A)
    7.5
    Weight (lbs)
    750
    Power (Hp)
    7.4 (5.5 Kw)
    Note
    4500 CFM at 5.0" Wg
    S-1000 Three Phase 575 Volt

    ArtNo: 89101020

    Power Voltage (V)
    575
    Frequency (Hz)
    60
    No of phases
    3
    Filter type
    Bag
    Number of filter elements
    24
    Filter material
    Superbag
    Weight (lbs)
    100
    Power (Hp)
    10.0 (7.5 Kw)
    Note
    5000 CFM at 7.0" Wg
    S-500 Three Phase 575 Volt

    ArtNo: 89101024

    S-750 Three Phase 208-230/460 Volt - Aluminum Impeller

    ArtNo: 89101028

    S-750 Three Phase 575 Volt - Aluminum Impeller

    ArtNo: 89101064

    S-1000 Three Phase 208-230/460 Volt - Aluminum Impeller

    ArtNo: 89101027

    S-1000 Three Phase 575 Volt - Aluminum Impeller

    ArtNo: 89101026

Accessories for this product 62

S-1000 Inlet Adapter QF 10 inch
ArtNo: 8030000032

S-1000 Inlet Adapter QF 10 inch

S-1000 Inlet Adapter Raw 14 inch
ArtNo: 8030000041

S-1000 Inlet Adapter Raw 14 inch

S-1000 Inlet Adapter QF 12 inch
ArtNo: 8030000048

S-1000 Inlet Adapter QF 12 inch

S-500 Inlet Adapter Raw 8 inch
ArtNo: 8030000080

S-500 Inlet Adapter Raw 8 inch

S-750 Inlet Adapter QF 13 inch
ArtNo: 8030000103

S-750 Inlet Adapter QF 13 inch

S-1000 Inlet Adapter Raw 12 inch
ArtNo: 8030000104

S-1000 Inlet Adapter Raw 12 inch

S-1000 Inlet Adapter QF 16 inch
ArtNo: 8030000105

S-1000 Inlet Adapter QF 16 inch

S-1000 Inlet Adapter Raw 16 inch
ArtNo: 8030000106

S-1000 Inlet Adapter Raw 16 inch

S-500 Inlet Adapter QF 10 inch
ArtNo: 8030000215

S-500 Inlet Adapter QF 10 inch

S-750 Inlet Adapter QF 10 inch
ArtNo: 8030000216

S-750 Inlet Adapter QF 10 inch

S-500 Inlet Adapter QF 12 inch
ArtNo: 8030000217

S-500 Inlet Adapter QF 12 inch

S-750 Inlet Adapter QF 12 inch
ArtNo: 8030000218

S-750 Inlet Adapter QF 12 inch

S-750 Inlet Adapter QF 14 inch
ArtNo: 8030000219

S-750 Inlet Adapter QF 14 inch

S-500 Inlet Adapter Raw 10 inch
ArtNo: 8030000277

S-500 Inlet Adapter Raw 10 inch

S-1000 Inlet Adapter QF 14 inch
ArtNo: 8030000310

S-1000 Inlet Adapter QF 14 inch

S-1000 Inlet Adapter QF 15 inch
ArtNo: 8030000340

S-1000 Inlet Adapter QF 15 inch

S-750 Inlet Adapter QF 11 inch
ArtNo: 8030000345

S-750 Inlet Adapter QF 11 inch

S-500 Inlet Adapter QF 11 inch
ArtNo: 8030001025

S-500 Inlet Adapter QF 11 inch

S-500 Inlet Adapter QF 9 inch
ArtNo: 8030001029

S-500 Inlet Adapter QF 9 inch

S-1000 Inlet Adapter Raw 10 inch
ArtNo: 8030001043

S-1000 Inlet Adapter Raw 10 inch

S-750 Inlet Adapter Raw 8 inch
ArtNo: 8030001061

S-750 Inlet Adapter Raw 8 inch

S-500 Inlet Adapter Raw 12 inch
ArtNo: 8030001109

S-500 Inlet Adapter Raw 12 inch

S-1000 Inlet Adapter QF 11 inch
ArtNo: 8030001132

S-1000 Inlet Adapter QF 11 inch

S-750 Inlet Adapter Raw 10 inch
ArtNo: 8030001138

S-750 Inlet Adapter Raw 10 inch

S-500 Inlet Adapter Raw 9 inch
ArtNo: 8030001142

S-500 Inlet Adapter Raw 9 inch

S-1000 Inlet Adapter Raw 13 inch
ArtNo: 8030001316

S-1000 Inlet Adapter Raw 13 inch

S-750 Inlet Adapter QF 8 inch
ArtNo: 8030001379

S-750 Inlet Adapter QF 8 inch

S-1000 Inlet Adapter Raw 15 inch
ArtNo: 8030001394

S-1000 Inlet Adapter Raw 15 inch

Adapter Flange Galv 16ga 11RO 11 FFL L=10.00 Weld=SO Caulk=N Buff=N Dwg=Y
ArtNo: 8030003058

Adapter Flange Galv 16ga 11RO 11 FFL L=10.00 Weld=SO Caulk=N Buff=N Dwg=Y

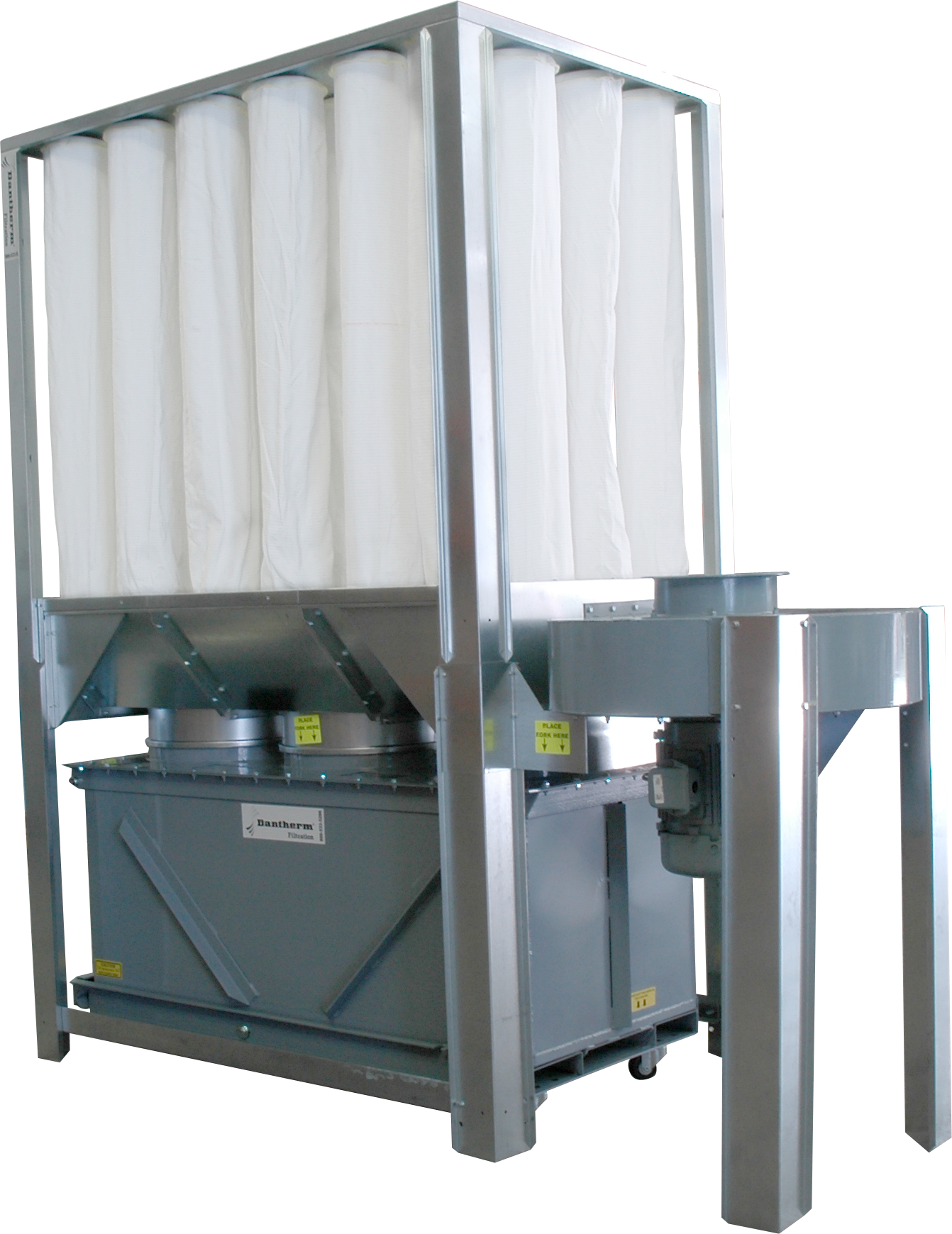

230 Gallon Dump Bin
ArtNo: 89101011

S-Bin

S-500 Inlet Adapter Raw 11 inch
ArtNo: 89101033

S-500 Inlet Adapter Raw 11 inch

S-750 Inlet Adapter Raw 9 inch
ArtNo: 89101038

S-750 Inlet Adapter Raw 9 inch

S-750 Inlet Adapter Raw 13 inch
ArtNo: 89101042

S-750 Inlet Adapter Raw 13 inch

S-750 Inlet Adapter QF 9 inch
ArtNo: 89101045

S-750 Inlet Adapter QF 9 inch

S-1000 Inlet Adapter Raw 11 inch
ArtNo: 89101053

S-1000 Inlet Adapter Raw 11 inch

S-1000 Inlet Adapter QF 13 inch
ArtNo: 89101058

S-1000 Inlet Adapter QF 13 inch

S-500 Manual shaker kit
ArtNo: 89101071

S-500 Manual shaker kit

S-500 Mechanical shaker kit
ArtNo: 89101072

S-500 Mechanical shaker kit

S-500 Auto 208-230/460V shaker kit
ArtNo: 89101073

S-500 Auto 208-230/460V shaker kit

S-500 Auto 575V
ArtNo: 89101074

S-500 Auto 575V

S-750/1000 Manual shaker kit
ArtNo: 89101075

S-750/1000 Manual shaker kit

S-750/1000 Mechanical shaker kit
ArtNo: 89101076

S-750/1000 Mechanical shaker kit

S-750/1000 Auto 208-230/460V shaker kit
ArtNo: 89101077

S-750/1000 Auto 208-230/460V shaker kit

S-750/1000 Auto 575V shaker kit
ArtNo: 89101078

S-750/1000 Auto 575V shaker kit

Manual to Mechanical Shaker Upgrade Kit
ArtNo: 89101079

Manual to Mechanical Shaker Upgrade Kit

Manual to Auto 208-230/460V Shaker Upgrade Kit
ArtNo: 89101080

Manual to Auto 208-230/460V Shaker Upgrade Kit

Manual to Auto 575V Shaker Upgrade Kit
ArtNo: 89101081

Manual to Auto 575V Shaker Upgrade Kit

Shut Off Valve
ArtNo: 89101082

Shut Off Valve

Regulator Filter Combo
ArtNo: 89101083

Regulator Filter Combo

10HP 3Ph/208-230V NEMA 12 r/s PBS
ArtNo: 89115521

10HP 3Ph/208-230V NEMA 12 r/s PBS

7.5HP 1Ph/208-230V NEMA 4/12 PBS
ArtNo: 89115574

7.5HP 1Ph/208-230V NEMA 4/12 PBS

Starter 5HP/1PH/208-240V
ArtNo: 89115585

Starter 5HP/1PH/208-240V

PBS 5hp/3ph/208-230v Coil Voltage - Line
ArtNo: 89115588

PBS 5hp/3ph/208-230v Coil Voltage - Line

PBS 7.5hp/3ph/208-230v Coil Voltage - Line
ArtNo: 89115589

PBS 7.5hp/3ph/208-230v Coil Voltage - Line

PBS 10hp/3ph/208-230v Coil Voltage - Line
ArtNo: 89115590

PBS 10hp/3ph/208-230v Coil Voltage - Line

PBS 5hp/3ph/460v Coil Voltage - Line
ArtNo: 89115591

PBS 5hp/3ph/460v Coil Voltage - Line

PBS 7.5hp/3ph/460v Coil Voltage - Line
ArtNo: 89115592

PBS 7.5hp/3ph/460v Coil Voltage - Line

Starter 10hp/3ph/460v
ArtNo: 89115593

Starter 10hp/3ph/460v

QF Clamp With Seal 500mm
ArtNo: 89201003

QF Clamp With Seal 500mm

Plastic Bag Ø 500 L=1300mm(1 Roll)
ArtNo: 89201024

Plastic Bag Ø 500 L=1300mm(1 Roll)

220X1375 mm Beam Bag/Bag Only
ArtNo: 89251020

220X1375 mm Beam Bag/Bag Only

Filter Bag (24 req. - Price is each)
ArtNo: 89251021

Filter Bag (24 req. - Price is each)
