De CARZ explosie isolatie klep - uw beschermingssysteem voor toepassingen met explosiegevaarlijke stoffen.

De CARZ explosie isolatieklep voorkomt dat explosiedrukgolven en vlammen van uw filter naar de werkplaats worden verplaatst. Hierdoor vermindert u het risico op een stofexplosie voor uw medewerkers en uw apparatuur.

Hoe werkt het?
De klep wordt tijdens normaal bedrijf open gehouden met een grote openingshoek, want dit zorgt voor een lage drukval. In het geval van een explosie in het filter, zal de drukgolf de klepplaat sluiten en vergrendelen. Wanneer de klepplaat gesloten is vormt dit een effectieve barrière tegen naderende vlammen. Dit voorkomt dat de explosie wordt overgebracht van het filter naar de werkplaats.

Het maakt niet uit in welke industrie u zich bevindt, of wat voor soort stof er wordt gegenereerd, wij bieden complete ATEX ontstoffingsinstallaties aan met de juiste filtersystemen en explosie isolatie kleppen.

  • Onafhankelijk getest volgens de huidige normen en voorschriften
  • Voldoet aan de meeste internationale codes ten aanzien van stofexplosiebeveiligingen (ATEX en NFPA68)
  • Breedste programma aan maten en toepassingen in combinatie met filtersysteemconfiguraties op de markt (inclusief goedkeuring voor overdruk- en onderdruksystemen).
  • Volledig vervaardigd door Nederman onder een gecertificeerd kwaliteitsborgingssysteem, waardoor het hoogste niveau van kwaliteit en betrouwbaarheid wordt gegarandeerd.

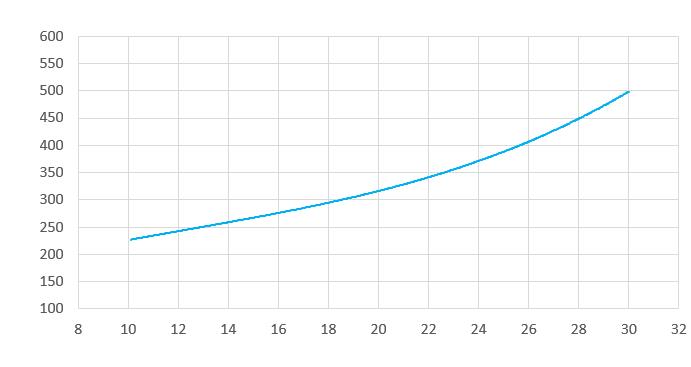

Technische gegevens
Certificeringen CE, EX
Materiaal Welded carbon steel, painted RAL5009
Operating temperature range -20°C - +70°C (Min 0 F Max 160 F)
Omgevingstemperatuur -20°C - +60°C (Min 0 F Max 140 F)
Explosion Class ATEX St1
Max velocity in duct (m/s) 30
Minimum velocity in duct 0
Install type Push and Pull
Dust type Organic
Kst (bar m/s) 200
Maximum reduced pressurem, Pred (bar) 0,45

Modellen42

    CARZ 160 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001200

    Diameter (mm)
    160
    Connection
    FL
    Gewicht (kg)
    23
    Dust Concentration in duct
    Any
    Minimum vessel size, push (m3)
    0,4
    Minimum vessel size, pull (m3)
    0,4
    CARZ 180 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001201

    Diameter (mm)
    180
    Connection
    FL
    Gewicht (kg)
    26
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 200 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001202

    Diameter (mm)
    200
    Connection
    FL
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 250 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001204

    Diameter (mm)
    250
    Connection
    FL
    Gewicht (kg)
    36
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 315 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001207

    Diameter (mm)
    315
    Connection
    FL
    Gewicht (kg)
    45
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 350 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001209

    Diameter (mm)
    350
    Connection
    FL
    Gewicht (kg)
    50
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 400 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001211

    Diameter (mm)
    400
    Connection
    FL
    Gewicht (kg)
    57
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 160 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001212

    Diameter (mm)
    160
    Connection
    NW
    Gewicht (kg)
    23
    Dust Concentration in duct
    Any
    Minimum vessel size, push (m3)
    0,4
    Minimum vessel size, pull (m3)
    0,4
    CARZ 180 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001213

    Diameter (mm)
    180
    Connection
    NW
    Gewicht (kg)
    26
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 200 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001214

    Diameter (mm)
    200
    Connection
    NW
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 250 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001216

    Diameter (mm)
    250
    Connection
    NW
    Gewicht (kg)
    36
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 315 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001219

    Diameter (mm)
    315
    Connection
    NW
    Gewicht (kg)
    45
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 355 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001221

    Diameter (mm)
    355
    Connection
    NW
    Gewicht (kg)
    50
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 400 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001223

    Diameter (mm)
    400
    Connection
    NW
    Gewicht (kg)
    57
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 160 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001224

    Diameter (mm)
    160
    Connection
    QF
    Gewicht (kg)
    23
    Dust Concentration in duct
    Any
    Minimum vessel size, push (m3)
    0,4
    Minimum vessel size, pull (m3)
    0,4
    CARZ 180 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001225

    Diameter (mm)
    180
    Connection
    QF
    Gewicht (kg)
    26
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 200 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001226

    Diameter (mm)
    200
    Connection
    QF
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 250 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001228

    Diameter (mm)
    250
    Connection
    QF
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 315 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001231

    Diameter (mm)
    315
    Connection
    QF
    Gewicht (kg)
    36
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 350 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001233

    Diameter (mm)
    350
    Connection
    QF
    Gewicht (kg)
    45
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 400 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001235

    Diameter (mm)
    400
    Connection
    QF
    Gewicht (kg)
    57
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 160 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000301

    Diameter (mm)
    160
    Connection
    FL
    Gewicht (kg)
    23
    Dust Concentration in duct
    Any
    Minimum vessel size, push (m3)
    0,4
    Minimum vessel size, pull (m3)
    0,4
    CARZ 180 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000302

    Diameter (mm)
    180
    Connection
    FL
    Gewicht (kg)
    26
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 200 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000303

    Diameter (mm)
    200
    Connection
    FL
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 250 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000304

    Diameter (mm)
    250
    Connection
    FL
    Gewicht (kg)
    36
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 315 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000305

    Diameter (mm)
    315
    Connection
    FL
    Gewicht (kg)
    45
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 350 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000306

    Diameter (mm)
    350
    Connection
    FL
    Gewicht (kg)
    50
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 400 Explosion Isolation Flap Valve FL, Ex D St1 AISI304

    ArtNo: 73000307

    Diameter (mm)
    400
    Connection
    FL
    Gewicht (kg)
    57
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 160 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000308

    Diameter (mm)
    160
    Connection
    NW
    Gewicht (kg)
    36
    Dust Concentration in duct
    Any
    Minimum vessel size, push (m3)
    0,4
    Minimum vessel size, pull (m3)
    0,4
    CARZ 180 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000309

    Diameter (mm)
    180
    Connection
    NW
    Gewicht (kg)
    26
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 200 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000310

    Diameter (mm)
    200
    Connection
    NW
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 315 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000312

    Diameter (mm)
    315
    Connection
    NW
    Gewicht (kg)
    45
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 355 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000313

    Diameter (mm)
    355
    Connection
    NW
    Gewicht (kg)
    50
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 400 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000314

    Diameter (mm)
    400
    Connection
    NW
    Gewicht (kg)
    57
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 160 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000315

    Diameter (mm)
    160
    Connection
    QF
    Gewicht (kg)
    23
    Dust Concentration in duct
    Any
    Minimum vessel size, push (m3)
    0,4
    Minimum vessel size, pull (m3)
    0,4
    CARZ 180 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000316

    Diameter (mm)
    180
    Connection
    QF
    Gewicht (kg)
    26
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 200 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000317

    Diameter (mm)
    200
    Connection
    QF
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 250 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000318

    Diameter (mm)
    250
    Connection
    QF
    Gewicht (kg)
    29
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 315 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000319

    Diameter (mm)
    315
    Connection
    QF
    Gewicht (kg)
    36
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 350 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000320

    Diameter (mm)
    350
    Connection
    QF
    Gewicht (kg)
    45
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 400 Explosion Isolation Flap Valve QF, Ex D St1 AISI304

    ArtNo: 73000321

    Diameter (mm)
    400
    Connection
    QF
    Gewicht (kg)
    57
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    CARZ 250 Explosion Isolation Flap Valve NW, Ex D St1 AISI304

    ArtNo: 73000311

    Diameter (mm)
    250
    Connection
    NW
    Toelichting van technische gegevens
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    Dust Concentration in duct
    < LEL
    Minimum vessel size, push (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9

Toebehoren bij dit product 21

CARZ Locking Sensor set
ArtNo: 73001236

CARZ Locking Sensor set

CARZ support frame suspended 160
ArtNo: 73001558

CARZ support frame suspended 160

CARZ support frame suspended 180
ArtNo: 73001559

CARZ support frame suspended 180

CARZ support frame suspended 200
ArtNo: 73001560

CARZ support frame suspended 200

CARZ support frame suspended 315
ArtNo: 73001562

CARZ support frame suspended 315

CARZ support frame suspended 500
ArtNo: 73001566

CARZ support frame suspended 500

CARZ support frame suspended 710
ArtNo: 73001569

CARZ support frame suspended 710

Carz support frame suspended 900
ArtNo: 73001571

Carz support frame suspended 900

CARZ support frame suspended 1000
ArtNo: 73001572

CARZ support frame suspended 1000

CARZ support frame wall-hanging 160
ArtNo: 73001573

CARZ support frame wall-hanging 160

CARZ support frame wall-hanging 180
ArtNo: 73001574

CARZ support frame wall-hanging 180

CARZ support frame wall-hanging 200
ArtNo: 73001575

CARZ support frame wall-hanging 200

CARZ support frame wall-hanging 250
ArtNo: 73001576

CARZ support frame wall-hanging 250

CARZ support frame wall-hanging 315
ArtNo: 73001577

CARZ support frame wall-hanging 315

CARZ support frame wall-hanging 350
ArtNo: 73001578

CARZ support frame wall-hanging 350

CARZ support frame wall-hanging 400
ArtNo: 73001579

CARZ support frame wall-hanging 400

CARZ support frame wall-hanging 450
ArtNo: 73001580

CARZ support frame wall-hanging 450

CARZ support frame wall-hanging 500
ArtNo: 73001581

CARZ support frame wall-hanging 500

CARZ support frame wall-hanging 560
ArtNo: 73001582

CARZ support frame wall-hanging 560

CARZ support frame wall-hanging 900
ArtNo: 73001586

CARZ support frame wall-hanging 900

CARZ support frame wall-hanging 1000
ArtNo: 73001587

CARZ support frame wall-hanging 1000
