FilterBench Downdraft Table
A self-contained downdraft table used for extraction and filtering of dust.
The FilterBench is a self-contained downdraft table and is available in three different sizes. The FilterBench is used for extraction and filtering of dust from materials like composite, plastic, fiberglass and wood arising from lighter processes such as sanding, de-burring, linishing, fettling, ingredient weighing etc. Easy to use and always with extraction at hand. The FilterBench should not be used in an environment with danger of explosions or for dust in explosive concentrations. The FilterBench should not be used for hot or spark generating processes such as welding fumes or metal grinding.
-
Easy to use and always with extraction at hand.
-

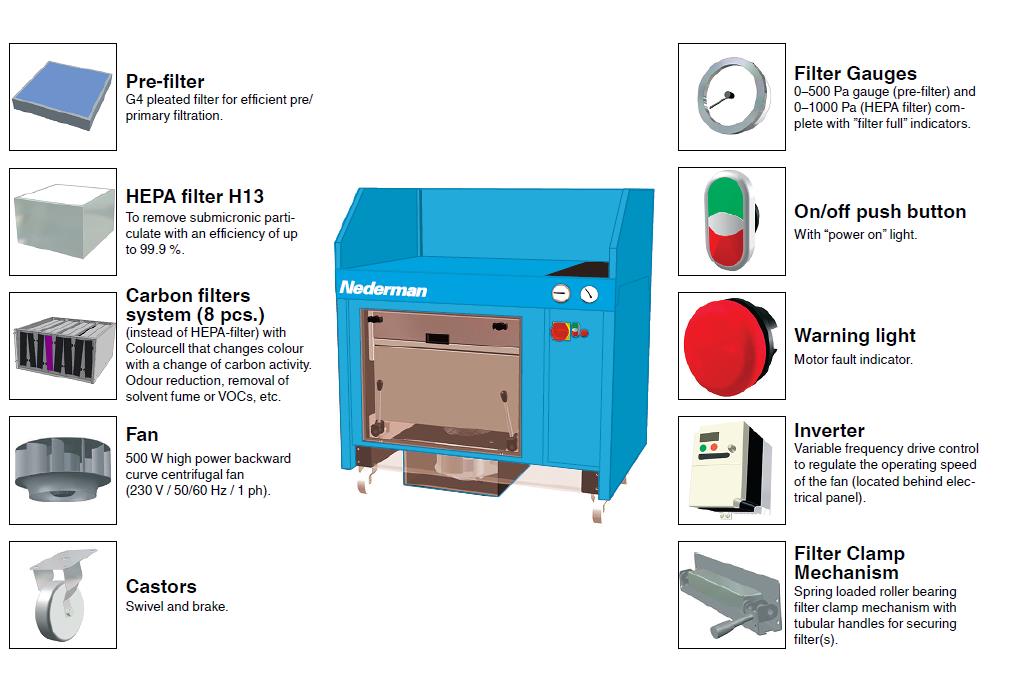

Pre-filter (G4) and HEPA-filter (H13) included as standard
-
Simple on/off push button control making the product easy to
understand and operate
-
Fan inverter included as standard making it possible to optimize air flow and minimize energy consumption
-
Castors with swivel and brake included as standard making
the product easy and safe to move and position
Certifications |
CE |
Filter efficiency (%) |
99,9 |
Power Voltage (V) |
230 |
Frequency (Hz) |
50 |
No of phases |
1 |
Electric plug |
Euro (CEE 7/2 P+E) |
FilterBench 23, with HEPA filter
FilterBench 23S, with HEPA filter
FilterBench 46, with HEPA filter
FilterBench 69, with HEPA filter
ArtNo: 12376528
Prefilter G4 for FilterBench
|
ArtNo: 12376529
Hepa Filter H13 for FilterBench
|
ArtNo: 73000072
Plain rubber mat 740 × 300 × 5mm - sp
|
ArtNo: 73000073
Rail uprights for FB -sp
|
ArtNo: 73000074
Gantry assembly for FB-sp
|
ArtNo: 73000082
Perforated rubber mat 740 × 770 × 5mm FB -sp
|
