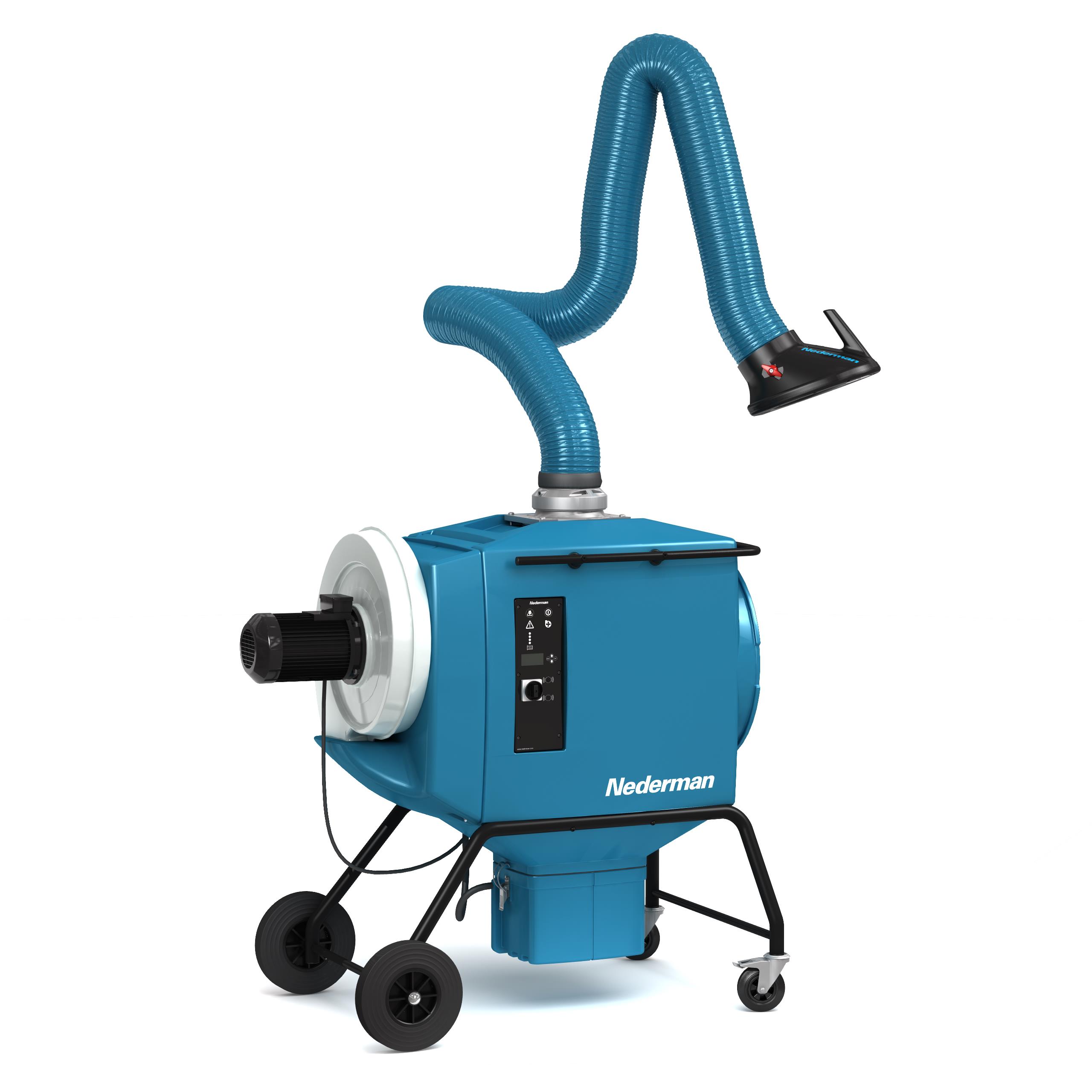

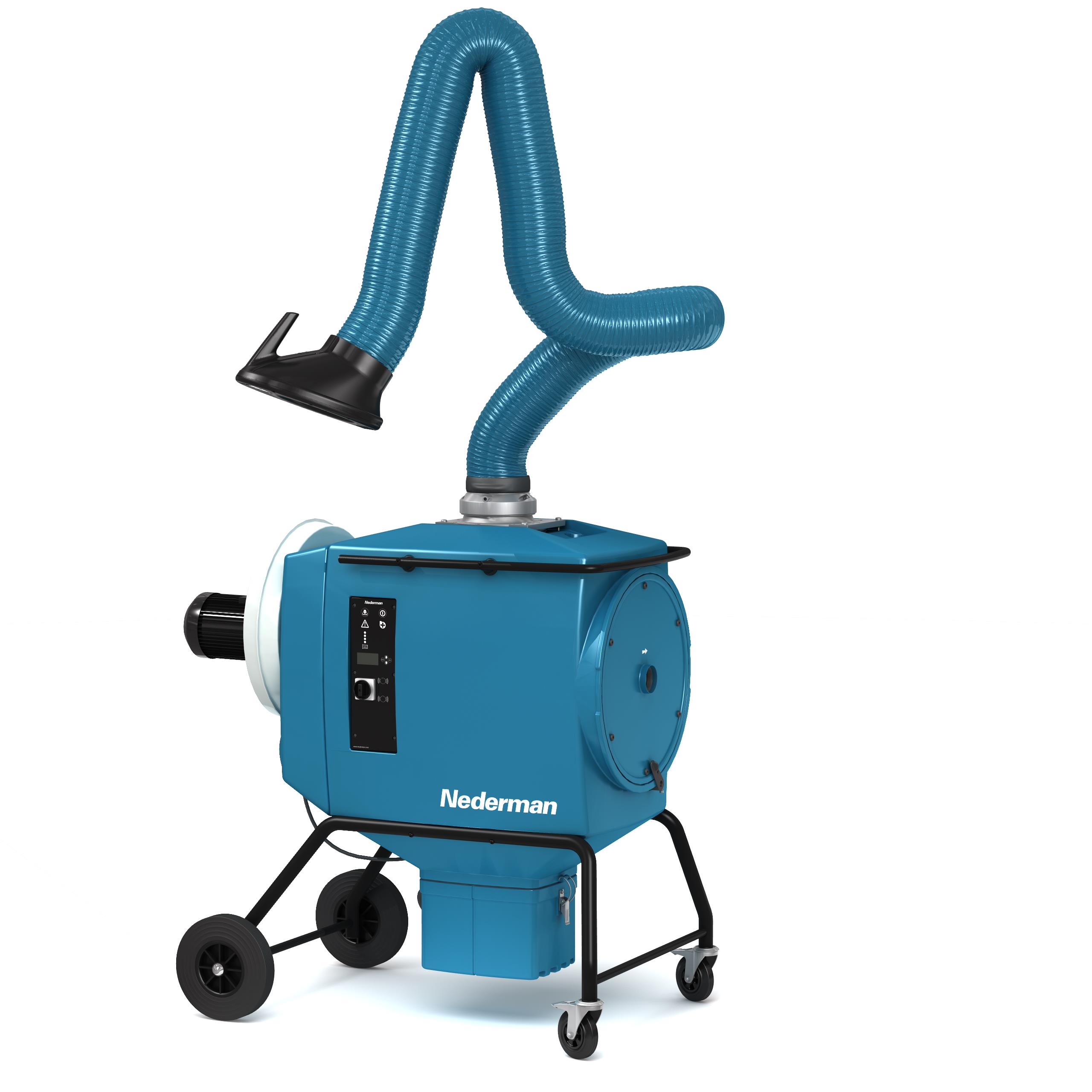

FilterBox 12A NANO

Automatically cleaned for medium to heavier dust & fume applications.

When mobility, flexibility and a compact footprint is key, a mobile solution is the often the best way to avoid contaminant exposure. Nederman FilterBox range of mobile dust and fume extraction units are easy to move around your factory to wherever the extraction is needed. The wide product range makes it easy to find a model with the capacity, features and filter type needed.

The FilterBox 12A+ is equipped with a powerful fan for a maximum air flow capacity of 1 200 m3/h (700 CFM). The nanofiber media technology utilized in the extra large 17m2 (183 ft2) cartridge is ideal for frequent welding. It offers significant performance advantages like higher efficiency and surface loading properties which results in more effective filter cleaning and longer cleaning intervals. Advantages that will impose benefits in terms of filter life, productivity and lower cost of ownership.

The unit has an advanced filter control system indicating the pressure drop with a series of LED's as well as on the LCD display. When the air flow is too low an audial alarm precedes the automatic, motorized compressed air cleaning sequence. An integrated silencer reduces noise from the fan and outlet air. Additional protection from harmful particles is provided if a HEPA filter is installed (optional).
FilterBox 12A+ is available as a mobile unit on wheels but can be fixed mounted with an accessory kit.

Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.

  • Automatically operated filter cleaning with compressed air for long filter life.
  • LCD panel with operating status and menu system for parameter setup and settings. Possibility to connect a welding sensor clamp to automatically start the fan.
  • Automatic damper preventing dust from leaking out while cleaning.
  • Dust free filter replacement and emptying of dust bin.
  • MERV 15 rated filter *ASHRAE Standard 52.2, 2017, third party tested. Approved for welding fumes category W3 according to ISO 219 04-1, third party tested.

Technical data
Certifications CE
Standard ISO 21904
Noise level (dB(A)) 68
Protection class IP 54
Installation Indoor
Material Casing in rotomoulded plastic
Application Fumes
Dustbin volume (l) 15
Airflow (m³/h) 1200
Filter Area (m²) 17
Filter type Cartridge
Number of filter elements 1
Filter material Nanofiber
Electric plug Without
Mounting Mobile
Weight (kg) 115
Filter cleaning method Compressed air
Power (kW) 2,2
Note Filter class F9 (EN779), MERV 15 (ASHRAE 52.2)

Accessories for this product 13

LED light/fan switch Original
ArtNo: 10376922

LED light/fan switch Original

Filter-PW-FB-13
ArtNo: 12332672

Filter-PW-FB-13

HEPA filter H13 10m2 Filterbox
ArtNo: 12376615

HEPA filter H13 10m2 Filterbox

Spotlight original, (LED) 24V, 5W
ArtNo: 12376616

Spotlight original, (LED) 24V, 5W

Bags for Filterbox dust bin, 10pcs
ArtNo: 12376618

Bags for Filterbox dust bin, 10pcs

Outlet with duct connection D=200mm
ArtNo: 12376749

Outlet with duct connection D=200mm

HEPA filter H14 10m2 Filterbox
ArtNo: 12376756

HEPA filter H14 10m2 Filterbox

Trolley for Filterbox
ArtNo: 12376841

Trolley for Filterbox

Filter NANO-FB-17
ArtNo: 12377251

High efficiency Main Replacement filter for FilterBox. Nanofiber 17 m² (183 ft2). Compatible with all FilterBoxes with Pneumatic cleaning.

Filter PTFE-FB-13
ArtNo: 12377252

FilterBox ePTFE High Efficiency Replacement filter. 13m² ( 140 ft2).

Sensor Clamp
ArtNo: 14372199

Sensor clamp to be attached to the earth cable of the welding power source.

Convert Mobile Filter to Wall Mount
ArtNo: 89299136

Convert Mobile Filter to Wall Mount

FBox Floor Stand Conversion Kit
ArtNo: 89299233

FBox Floor Stand Conversion Kit
