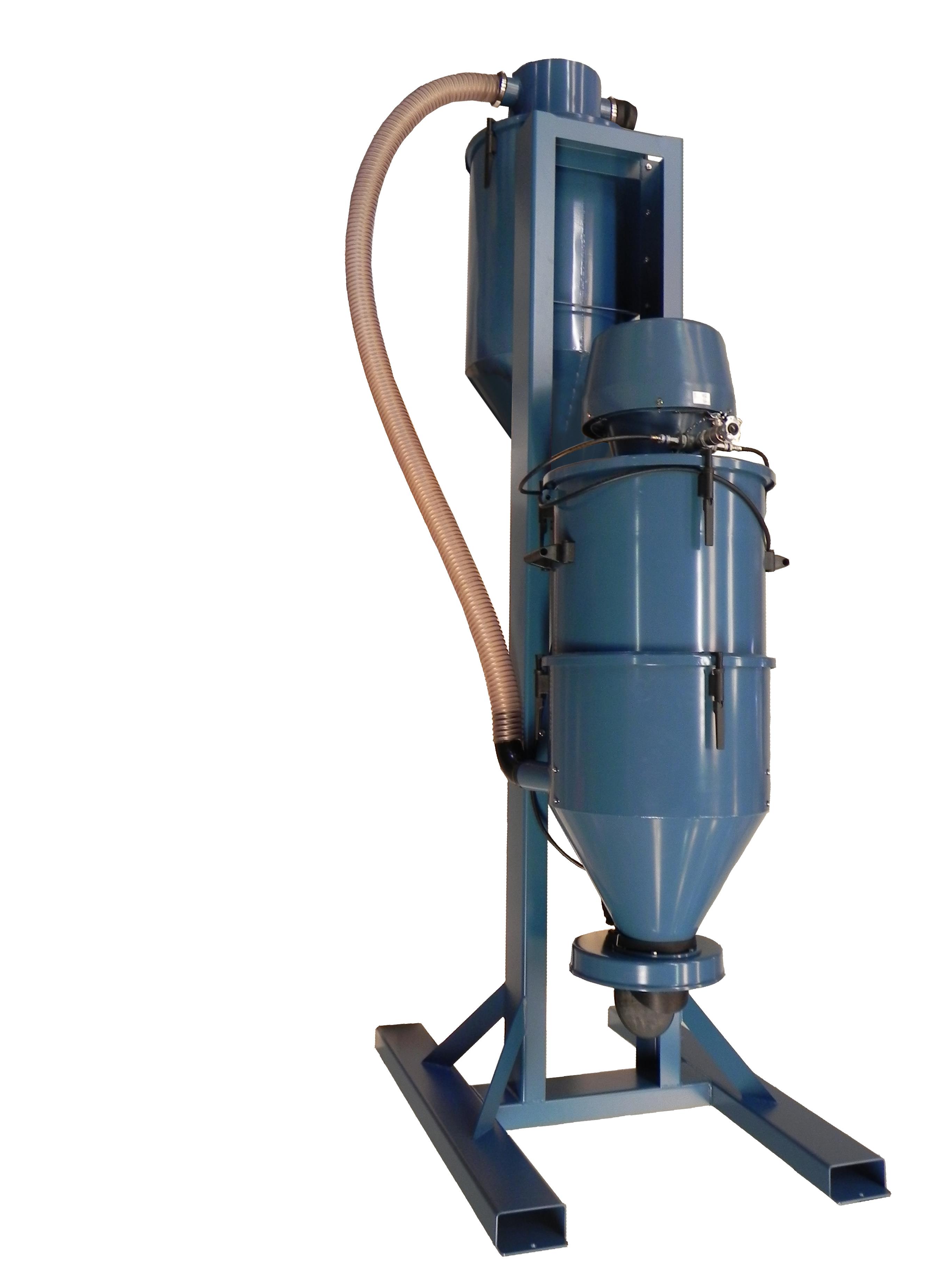

Industrial vacuum cleaner 722A
Powerful dust collector with pre separator
An extremely powerful vacuum unit for the collection of blasting grit and other granulated material. The combination of high vacuum and high airflow make material transport over long distance possible. Compact design, built on a frame with the possibility of transportation by forklift. Equipped with grit and dust separator. The clean grit is collected in a silo and can be re-used. The dust is trapped in a high efficient NCF filter and discharged into a dustbin or bag.
-
High vacuum and airflow
-
Dust separation from grit and granulates
-
Efficient self-cleaning NCF filter
Certifications |
CE |
Installation |
Outdoor, Indoor |
Filter cleaning method |
Reverse air pulse |
Application |
Granulate, Grit, Swarf |
Dustbin volume (l) |
67+220 |
Filter Area (m²) |
5,25 |
Filter type |
Candle filter |
Number of filter elements |
70 |
Filter material |
Vyon 5,25 |
Type of hose |
PU12 |
Compressed air requirement |
8,6 Nm3/min |
Max airflow (m³/h) |
660 |
Noise level (dB(A)) |
78.0 |
Max vaccum (kPa) |
-68 |
Weight (kg) |
300 |
Hose length (m) |
10 |
Hose diameter (mm) |
76 |
Note |
With gulper head |
722A - NE96, S200 with manual discharge valve
ArtNo: 43220001
Control S for NE 22-76
|
ArtNo: 43220026
Control S for NE 22-76, wo/control box
|
ArtNo: 43222008
Control S for NE86-96, wo/control box
|
