QF Segmented bends

QF Segmented bends

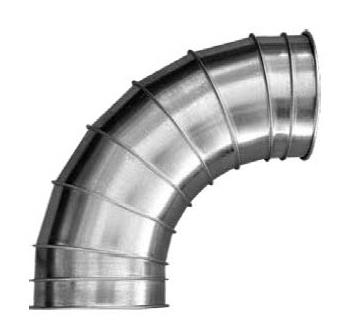

QF segmented bends with radius 1,5 x diameter to centerline

Technical data
Material Thickness 0,9mm
End Type A QF
Centre Line Radius (CLR) (mm) 1,5

Models35

    Bend Seg Galv 0,9mm 350QF 90Deg R=1,5

    ArtNo: 8210000434

    Diameter A (mm)
    350
    Angle Degree
    90
    Weight
    12,19
    Bend Seg Galv 0,9mm 400QF 90Deg R=1,5

    ArtNo: 8210000439

    Diameter A (mm)
    400
    Angle Degree
    90
    Inner dimension (ID) (mm)
    398
    Outer dimension (OD) (mm)
    400
    Tangents
    50
    Weight
    14
    Bend Seg Galv 0,9mm 450QF 90Deg R=1,5

    ArtNo: 8210000444

    Diameter A (mm)
    450
    Angle Degree
    90
    Inner dimension (ID) (mm)
    447
    Outer dimension (OD) (mm)
    449
    Tangents
    50
    Weight
    15
    Bend Seg Galv 0,9mm 500QF 90Deg R=1,5

    ArtNo: 8210000449

    Diameter A (mm)
    500
    Angle Degree
    90
    Weight
    24,9
    Bend Seg Galv 0,9mm 560QF 90Deg R=1,5

    ArtNo: 8210000454

    Diameter A (mm)
    560
    Angle Degree
    90
    Weight
    32,05
    Bend Seg Galv 0,9mm 630QF 90Deg R=1,5

    ArtNo: 8210000459

    Diameter A (mm)
    630
    Angle Degree
    90
    Weight
    28
    Bend Seg Galv 0,9mm 710QF 90Deg R=1,5

    ArtNo: 8210000464

    Diameter A (mm)
    710
    Angle Degree
    90
    Weight
    40,62
    Bend Seg Galv 0,9mm 350QF 60Deg R=1,5

    ArtNo: 8210000433

    Diameter A (mm)
    350
    Angle Degree
    60
    Weight
    8,37
    Bend Seg Galv 0,9mm 400QF 60Deg R=1,5

    ArtNo: 8210000438

    Diameter A (mm)
    400
    Angle Degree
    60
    Weight
    10
    Bend Seg Galv 0,9mm 450QF 60Deg R=1,5

    ArtNo: 8210000443

    Diameter A (mm)
    450
    Angle Degree
    60
    Weight
    13,93
    Bend Seg Galv 0,9mm 500QF 60Deg R=1,5

    ArtNo: 8210000448

    Diameter A (mm)
    500
    Angle Degree
    60
    Weight
    17,05
    Bend Seg Galv 0,9mm 560QF 60Deg R=1,5

    ArtNo: 8210000453

    Diameter A (mm)
    560
    Angle Degree
    60
    Weight
    21,87
    Bend Seg Galv 0,9mm 630QF 60Deg R=1,5

    ArtNo: 8210000458

    Diameter A (mm)
    630
    Angle Degree
    60
    Weight
    20
    Bend Seg Galv 0,9mm 710QF 60Deg R=1,5

    ArtNo: 8210000463

    Diameter A (mm)
    710
    Angle Degree
    60
    Weight
    27,72
    Bend Seg Galv 0,9mm 350QF 45Deg R=1,5

    ArtNo: 8210000432

    Diameter A (mm)
    350
    Angle Degree
    45
    Weight
    6,46
    Bend Seg Galv 0,9mm 400QF 45Deg R=1,5

    ArtNo: 8210000437

    Diameter A (mm)
    400
    Angle Degree
    45
    Weight
    7
    Bend Seg Galv 0,9mm 450QF 45Deg R=1,5

    ArtNo: 8210000442

    Diameter A (mm)
    450
    Angle Degree
    45
    Weight
    10,76
    Bend Seg Galv 0,9mm 500QF 45Deg R=1,5

    ArtNo: 8210000447

    Diameter A (mm)
    500
    Angle Degree
    45
    Weight
    13,13
    Bend Seg Galv 0,9mm 560QF 45Deg R=1,5

    ArtNo: 8210000452

    Diameter A (mm)
    560
    Angle Degree
    45
    Weight
    16,78
    Bend Seg Galv 0,9mm 630QF 45Deg R=1,5

    ArtNo: 8210000457

    Diameter A (mm)
    630
    Angle Degree
    45
    Weight
    14
    Bend Seg Galv 0,9mm 710QF 45Deg R=1,5

    ArtNo: 8210000462

    Diameter A (mm)
    710
    Angle Degree
    45
    Weight
    21,28
    Bend Seg Galv 0,9mm 350QF 30Deg R=1,5

    ArtNo: 8210000431

    Diameter A (mm)
    350
    Angle Degree
    30
    Weight
    4,56
    Bend Seg Galv 0,9mm 400QF 30Deg R=1,5

    ArtNo: 8210000436

    Diameter A (mm)
    400
    Angle Degree
    30
    Weight
    5
    Bend Seg Galv 0,9mm 450QF 30Deg R=1,5

    ArtNo: 8210000441

    Diameter A (mm)
    450
    Angle Degree
    30
    Weight
    7,58
    Bend Seg Galv 0,9mm 500QF 30Deg R=1,5

    ArtNo: 8210000446

    Diameter A (mm)
    500
    Angle Degree
    30
    Weight
    9,21
    Bend Seg Galv 0,9mm 560QF 30Deg R=1,5

    ArtNo: 8210000451

    Diameter A (mm)
    560
    Angle Degree
    30
    Weight
    11,7
    Bend Seg Galv 0,9mm 630QF 30Deg R=1,5

    ArtNo: 8210000456

    Diameter A (mm)
    630
    Angle Degree
    30
    Weight
    10
    Bend Seg Galv 0,9mm 710QF 30Deg R=1,5

    ArtNo: 8210000461

    Diameter A (mm)
    710
    Angle Degree
    30
    Weight
    14,83
    Bend Seg Galv 0,9mm 350QF 15Deg R=1,5

    ArtNo: 8210000430

    Diameter A (mm)
    350
    Angle Degree
    15
    Weight
    3,03
    Bend Seg Galv 0,9mm 400QF 15Deg R=1,5

    ArtNo: 8210000435

    Diameter A (mm)
    400
    Angle Degree
    15
    Weight
    4
    Bend Seg Galv 0,9mm 450QF 15Deg R=1,5

    ArtNo: 8210000440

    Diameter A (mm)
    450
    Angle Degree
    15
    Weight
    5,44
    Bend Seg Galv 0,9mm 500QF 15Deg R=1,5

    ArtNo: 8210000445

    Diameter A (mm)
    500
    Angle Degree
    15
    Weight
    7,21
    Bend Seg Galv 0,9mm 560QF 15Deg R=1,5

    ArtNo: 8210000450

    Diameter A (mm)
    560
    Angle Degree
    15
    Weight
    7,96
    Bend Seg Galv 0,9mm 630QF 15Deg R=1,5

    ArtNo: 8210000455

    Diameter A (mm)
    630
    Angle Degree
    15
    Weight
    6
    Bend Seg Galv 0,9mm 710QF 15Deg R=1,5

    ArtNo: 8210000460

    Diameter A (mm)
    710
    Angle Degree
    15
    Weight
    10,4
