Nederman

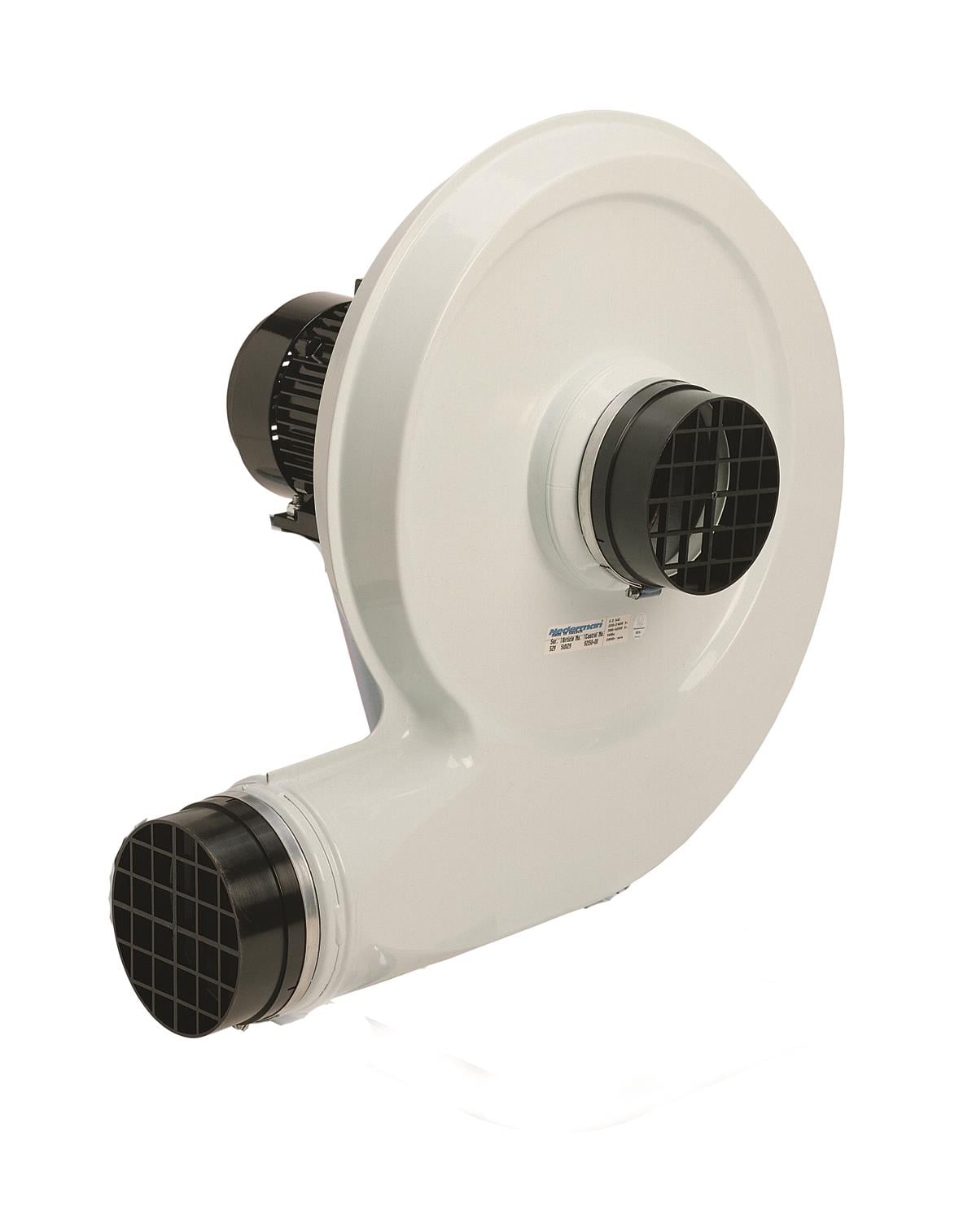

Fan N29

Fan N29

A centrifugal fan mainly designed for use with Nederman extraction products.

The fan must not be used in an environment where there is a danger of explosion or for transport of flammable or explosive gases

  • Compact
  • Easy to use

Datos técnicos
Certificaciones CE
Instalación Interior, Exterior
Apto para polvo combustible No
Flujo de aire (m3/h) 1500 m3/h (1,5 kW), 3000 m3/h (2,2 kW)
Rango de temperatura ambiente -20 to +40 C (-4 F to 104 F)
Temperatura de funcionamiento Max. 60 C
Frequency (Hz) 60
No of phases 3
Power (kW) 2,2
Note With fan bracket
Weight (kg) 32

Modelos2

Accesorios para este producto 18

Foot stand for fan 529.
ArtNo: 14321745

Foot stand for fan 529.

Adaptor Ø125/Ø100 mm
ArtNo: 14341077

Reducer. diam.125/100mm.

Adaptor Ø125/Ø75 mm
ArtNo: 14341080

Reducer. diam.125/75mm. black.

Nozzle with magnet. 250 x 30 mm. Aluminium. Hose connection Ø100 mm.
ArtNo: 14500226

Nozzle. silumin. with magnet.

Split inlet Ø125 int. / 2xØ125 mm ext.
ArtNo: 14500726

Double adapter. diam.125mm/2x125mm.

Split inlet Ø125 int. / 2xØ75 mm ext.
ArtNo: 14500826

Double adapter. diam.125mm/2x75mm.

Nozzle with magnet. 260 x 100 mm. Polycarbonate. Hose connection Ø100 mm.
ArtNo: 14501226

Nozzle. plastic. with magnet.

Coupling tube Ø75mm
ArtNo: 14503626

Connector 3"-3". (75mm).

Coupling tube Ø100mm
ArtNo: 14504626

Connector 4"-4". (100mm).

Coupling tube Ø125mm
ArtNo: 14505626

Connector 5"-5". (125mm).

Coupling tube Ø150mm
ArtNo: 14506626

Connector 6"-6". (150mm).

Inlet adaptor for hose Ø160 mm
ArtNo: 14510326

Adapter diam.=160mm.

Adaptor Ø160/ext. Ø75 mm
ArtNo: 14510426

Reducer inside diam=160mm. outside

Adaptor Ø160/ext. Ø100 mm
ArtNo: 14510526

Reducer inside diam=160mm. outside

Adaptor Ø160 ext./Ø125 mm
ArtNo: 14510626

Reducer inside diam=160mm. outside

Split inlet Ø160 int. / 2xØ100 mm ext.
ArtNo: 14510726

Split intake(t-tube).

Adaptor Ø160/Ø150 mm
ArtNo: 14511226

Adapter. diam 160/150mm.

Coupling tube Ø160mm
ArtNo: 14511326

Adapter diam=160mm
